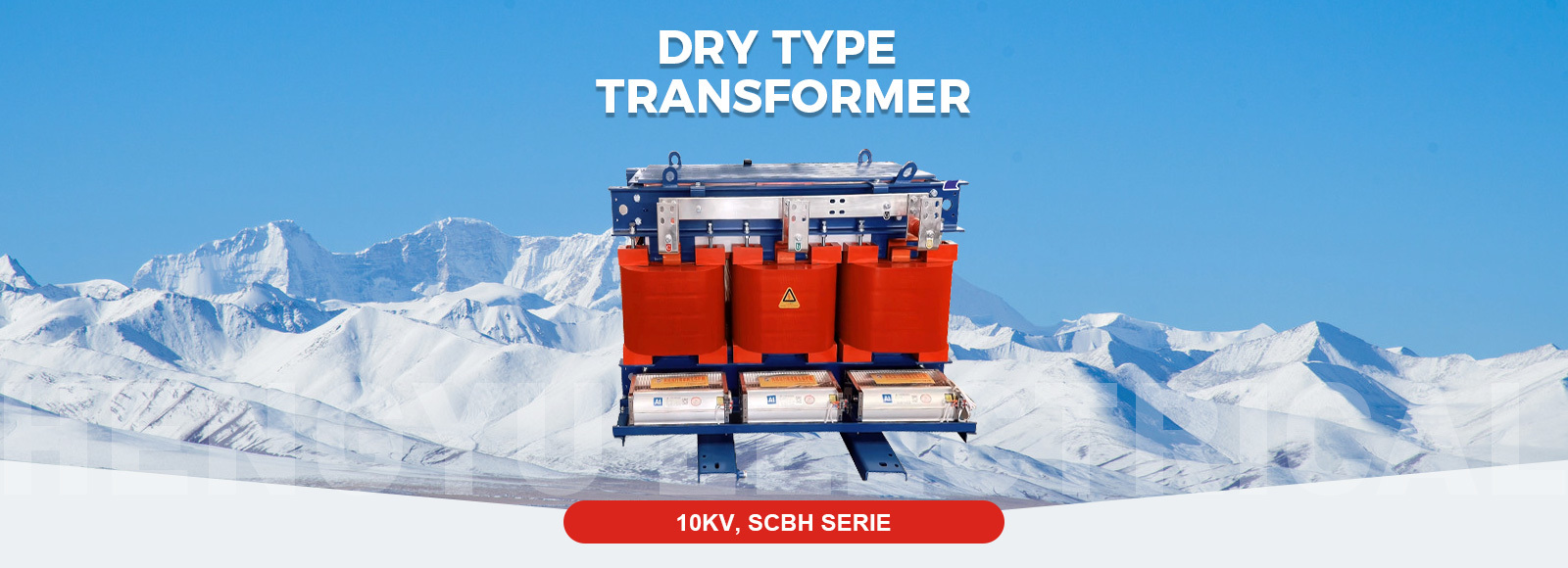

10kV, SCBH series amorphous alloy dry-type transformer
Classification:
Key Words:
10kV, SCBH series amorphous alloy dry-type transformer
Mailbox:
Product Model Meaning
model number | S | C | (B) | H | - | □ | □ | / | □ |
number meaning | three-phase (physics) | Epoxy resin casting type | Foil coils are available for low voltage | Amorphous alloy core |
| Performance Level Designator | Rated Capacity |
| Voltage Class |
Product Overview
The company developed and designed amorphous alloy dry-type transformer, superior performance, product safety, reliability, environmental protection, can be deep into the load center, to adapt to the development of high-density load of modern big cities. Can be widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises and power plants, especially suitable for flammable, explosive and other fire requirements of the place of installation and use.
Core Advantages
1.Energy efficient, ultra-low loss
Adopting amorphous alloy core (rectangular cross-section, three-phase five-pillar/three-pillar structure), the no-load loss is reduced by 75% compared with the traditional transformer, and the energy-saving effect is excellent.
2.Rugged, safe and reliable
Low-voltage coil: Copper foil winding, strong conductivity and high stability.
High-voltage coil: Epoxy resin vacuum casting or Nomex insulating material, combined with continuous structure and VPI vacuum impregnation + Class H high temperature curing process, high mechanical strength, fast heat dissipation, and high short circuit resistance.
3 Green and environmental protection, the whole process is worry-free
Flame-retardant and explosion-proof, non-polluting, with fire rating up to industry-leading standards.
100% decomposable and recyclable at the end of the product's life, with zero environmental burden.
Product Highlights
1.Ultra-quiet operation: Low noise design, compact size, easy installation, maintenance-free.
2.Excellent insulation performance: Very low partial discharge, high insulation level and more than 30% longer service life.
3.Resistant to environmental erosion: Excellent "three-proof" ability (moisture-proof/mold-proof/salt spray-proof), no cracking potential.
4.Outstanding overload capacity: Supports 120% long-term safe load, adapting to the needs of complex working conditions.
Product Certificate
Transformer Workshop
| 10kV, SCBH15 amorphous alloy dry-type transformer | ||||||||||
| Rated Capacity (kVA) |
Voltage combination (kV) |
Linkage group labeling | No-load current (%) |
No-load loss (W) |
Load Loss (W) | Short Circuit Impedance (%) |
||||
| High Voltag | High voltage tap range (%) |
Low Voltag | B (100°C) |
F (120°C) |
H (145°C) |
|||||
| 30 | 6 6.3 6.6 10 10.5 11 |
±5 or |
0.4 | Dyn11 | 1.6 | 70 | 670 | 710 | 760 | 4.0 |
| 50 | 1.4 | 90 | 940 | 1000 | 1070 | 4.0 | ||||
| 80 | 1.3 | 120 | 1290 | 1380 | 1480 | 4.0 | ||||
| 100 | 1.2 | 130 | 1480 | 1570 | 1690 | 4.0 | ||||
| 125 | 1.1 | 150 | 1740 | 1850 | 1980 | 4.0 | ||||
| 160 | 1.1 | 170 | 2000 | 2130 | 2280 | 4.0 | ||||
| 200 | 1.0 | 200 | 2370 | 2530 | 2710 | 4.0 | ||||
| 250 | 1.0 | 230 | 2590 | 2760 | 2960 | 4.0 | ||||
| 315 | 0.9 | 280 | 3270 | 3470 | 3730 | 4.0 | ||||
| 400 | 0.8 | 310 | 3750 | 3990 | 4280 | 4.0 | ||||
| 500 | 0.8 | 360 | 4590 | 4880 | 5230 | 4.0 | ||||
| 630 | 0.7 | 420 | 5530 | 5880 | 6290 | 4.0 | ||||
| Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing. | ||||||||||
| 10kV, SCBH15 amorphous alloy dry-type transformer | ||||||||||
| Rated Capacity (kVA) |
Voltage combination (kV) |
Linkage group labeling | No-load current (%) |
No-load loss (W) |
Load Loss (W) |
Short Circuit Impedance (%) |
||||
| High Voltag | High-voltage tap range (%) |
low voltage | B (100°C) |
F (120°C) |
H (145°C) |
|||||
| 630 | 6 6.3 6.6 10 10.5 11 |
±5 or |
0.4 | Dyn11 | 0.7 | 410 | 5610 | 5960 | 6400 | 6.0 |
| 800 | 0.7 | 480 | 6550 | 6960 | 7460 | 6.0 | ||||
| 1000 | 0.6 | 550 | 7650 | 8130 | 8760 | 6.0 | ||||
| 1250 | 0.6 | 650 | 9100 | 9690 | 10370 | 6.0 | ||||
| 1600 | 0.6 | 760 | 11050 | 11730 | 12580 | 6.0 | ||||
| 2000 | 0.5 | 1000 | 13600 | 14450 | 15560 | 6.0 | ||||
| 2500 | 0.5 | 1200 | 16150 | 17170 | 18450 | 6.0 | ||||
| 1600 | 0.6 | 760 | 12280 | 12960 | 13900 | 8.0 | ||||
| 2000 | 0.5 | 1000 | 15020 | 15960 | 17110 | 8.0 | ||||
| 2500 | 0.5 | 1200 | 17760 | 18890 | 20290 | 8.0 | ||||
| Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing. | ||||||||||
| 10kV, SCBH16 amorphous alloy dry-type transformer | ||||||||||
| Rated Capacity (kVA) |
Voltage combination (kV) |
Linkage group labeling | No-load current (%) |
No-load loss (W) |
Load Loss (W) |
Short Circuit Impedance (%) |
||||
| High Voltag | High-voltage tap range (%) |
low voltage | B (100°C) |
F (120°C) |
H (145°C) |
|||||
| 30 | 6 6.3 6.6 10 10.5 11 |
±5 or |
0.4 | Dyn11 | 1.6 | 70 | 635 | 675 | 720 | 4.0 |
| 50 | 1.4 | 90 | 895 | 950 | 1015 | 4.0 | ||||
| 80 | 1.3 | 120 | 1225 | 1310 | 1405 | 4.0 | ||||
| 100 | 1.2 | 130 | 1405 | 1490 | 1605 | 4.0 | ||||
| 125 | 1.1 | 150 | 1655 | 1760 | 1880 | 4.0 | ||||
| 160 | 1.1 | 170 | 1900 | 2025 | 2165 | 4.0 | ||||
| 200 | 1.0 | 200 | 2250 | 2405 | 2575 | 4.0 | ||||
| 250 | 1.0 | 230 | 2460 | 2620 | 2810 | 4.0 | ||||
| 315 | 0.9 | 280 | 3105 | 3295 | 3545 | 4.0 | ||||
| 400 | 0.8 | 310 | 3560 | 3790 | 4065 | 4.0 | ||||
| 500 | 0.8 | 360 | 4360 | 4635 | 4970 | 4.0 | ||||
| 630 | 0.7 | 420 | 5255 | 5585 | 5975 | 4.0 | ||||
| 630 | 0.7 | 410 | 5330 | 5660 | 6080 | 6.0 | ||||
| Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing. | ||||||||||
