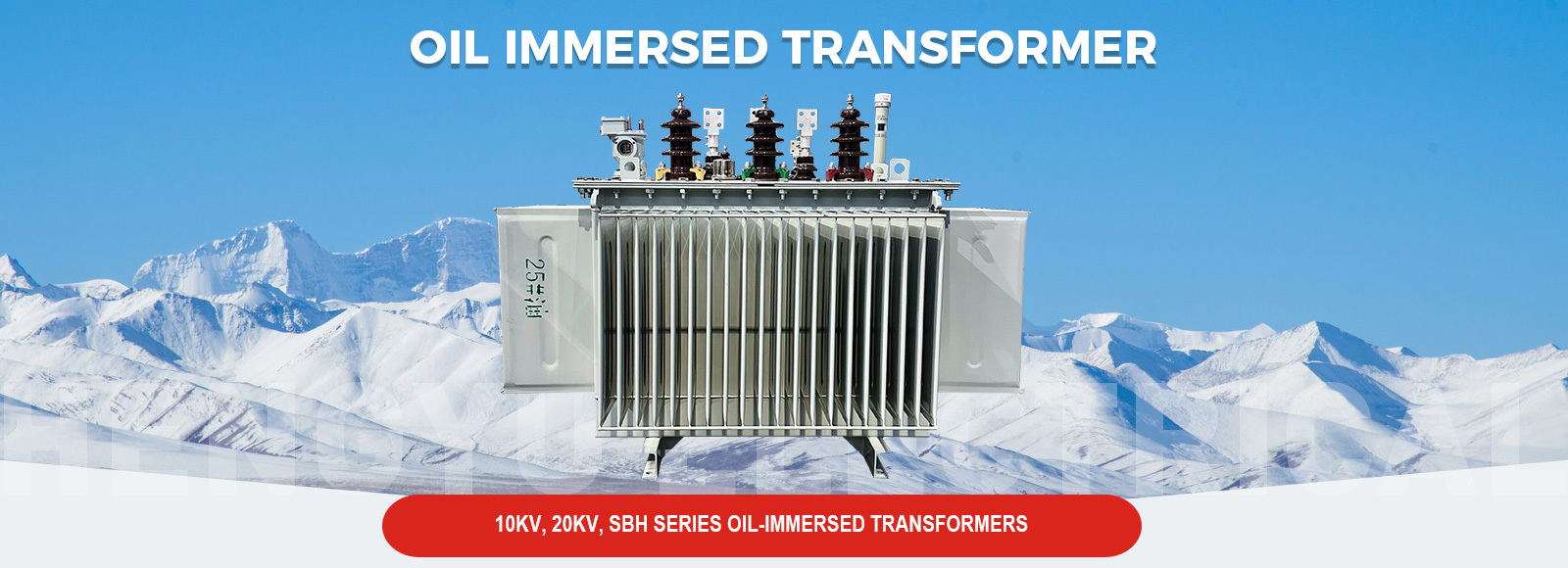

10kV, 20kV, SBH series oil-immersed transformers

10kV, 20kV, SBH series oil-immersed transformers

Model: 10kV, 20kV, S11, S13, S20, S22 Capacity: 30kVA~2500kVA Voltage: 6kV ~ 10kV or customized

Classification:

Oil immersed transformer

Key Words:

Mailbox:

Product Details Product parameters

Product Model Meaning

model number	S	□	-	M	□	/	□
number meaning	three-phase (physics)	Design number		fully sealed	Rated Capacity (kVA)		High Voltage Measurement (kV)

Product Overview

S series type fully sealed oil-immersed transformer is suitable for AC 50Hz, rated working voltage 20kV and below in the power system, as petroleum, metallurgy, chemical industry, textile, light industry and other enterprises and dusty places of the distribution transformer.

Cde Dsign

1.High-efficiency core structure

Adopting high permeability grain oriented cold rolled silicon steel sheet, full oblique seam stacking process, the core column is multi-stage stepped circular cross-section, uniform magnetic circuit, low no-load loss.

2. Strong heat dissipation winding process

The winding adopts corrugated oil channel + tight tape tying, non-impregnated paint process, high heat dissipation efficiency; concentric coil design, high-voltage winding is equipped with power-off adjustable tap changer, safe operation.

3. Fully sealed tank system

Corrugated oil tank structure: both heat dissipation and "breathing" compensation function, vacuum oil injection process to eliminate moisture intrusion, no oil storage cabinet design, maintenance-free, anti-oil aging.

Security And Monitoring

1. Multiple safety protection: 30~2500kVA standard with pressure relief valve, optional gas relay (with alarm/trip function).

2. Intelligent temperature control: The whole system is equipped with oil-immersed glass thermometer as standard, and 1000~2000kVA is equipped with outdoor signal thermometer to monitor the oil temperature in real time.

Advantageous Highlights

1. Long life and low maintenance: Fully sealed anti-oxidation design, no need for regular oil sample testing.

2. Compact and reliable: Corrugated tank surface powder coating, corrosion resistance and solid structure.

3. Safety upgrade: Tap changer power-off operation + multiple protection devices to eliminate operational risks.

Product certificate

Transformer Workshop

6~10kV, S11-M oil-immersed transformer
Rated Capacity (kVA)	Voltage combination (kV)			Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High Voltag	High voltage tap range (%)	low voltage	Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
30	11 10.5 10 6.3 6	±5 or ±2 x 2.5%	0.4 0.69	Yyn0 Dyn11	100	630/600	2.3	4
50					130	910/870	2.0	4
63					150	1090/1040	1.9	4
80					180	1310/1250	1.9	4
100					200	1580/1500	1.8	4
125					240	1890/1800	1.7	4
160					280	2310/2200	1.6	4
200					340	2730/2600	1.5	4
250					400	3200/3050	1.4	4
315					480	3830/3650	1.4	4
400					570	4520/4300	1.3	4
500					680	5410/5150	1.2	4
630					810	6200	1.1	4.5
800					960	7500	1.0	4.5
1000					1150	10300	1.0	4.5
1250					1360	12000	0.9	4.5
1600					1640	14500	0.8	4.5
2000					1960	19800	0.8	5
2500					2310	23000	0.7	5
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

20kV, S11-M oil-immersed transformer
Rated Capacity (kVA)	Voltage combination (kV)			Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High Voltag	High voltage tap range (%)	low voltage	Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
50	20 22 24	±5 ±2×2.5%	0.4	Dyn11 Yyn0	170	1270/1210	2.00	6.5
100					230	2120/2020	1.80	6.5
125					270	2500/2380	1.70	6.5
160					290	2970/2830	1.60	6.5
200					340	3500/3330	1.50	6.5
250					410	4160/3960	1.40	6.5
315					490	5010/4770	1.40	6.5
400					580	6050/5760	1.30	6.5
500					690	7280/6930	1.20	6.5
630					830	8280	1.10	6.5
800					980	9900	1.00	6.5
1000					1150	12150	1.00	6.5
1250					1410	14670	0.90	6.5
1600					1700	17550	0.80	6.5
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

6kV, 10kV, S13-M oil-immersed transformer
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	No-load loss (W)	Load Loss (W)		No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	No-load loss (W)	Dyn11/Yzn11	Yyn0	No-load current (%)	Short Circuit Impedance (%)
30	6 6.3 10 10.5	±2×2.5 or ±5	0.4	80	630	710	1.20	4.0
50				100	910	100	1.04
63				110	1090	1380	0.96
80				130	1310	1380	0.96
100				150	1580	1570	0.88
125				170	1890	1850	0.88
160				200	2310	2130	0.80
200				240	2730	2530	0.80
250				290	3200	2760	0.72
315				340	3830	3470	0.72
400				410	4520	3990	0.64
500				480	5410	4880	0.64
630				570	6200		0.48	4.5
800				700	7500		0.48
1000				830	10300		0.48
1250				970	12000		0.40
1600				1170	14500		0.40
2000				1360	18300		0.32	5
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

20kV, S13-M oil-immersed transformer
Rated Capacity (kVA)	High Voltag(kV)	High-voltage tap range (%)	low voltage (kV)	Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
30	20	±2×2.5 ±5	0.4	Dyn11 Yzn11 Yyn0	80	660/630	1.70	5.5
50					100	960/910	1.60
63					120	1140/1090	1.50
80					140	1370/1300	1.40
100					160	1640/1570	1.30
125					190	1980/1880	1.20
160					230	2410/2300	1.10
200					270	2850/2720	1.00
250					320	3340/3180	0.96
315					380	4000/3810	0.88
400					460	4720/4490	0.80
500					540	5640/5380	0.80
630					650	6480	0.72	6.0
800					780	7840	0.64
1000					920	10700	0.56
1250					1100	12500	0.56
1600					1330	15100	0.48
2000					1560	19100	0.48
2500					1870	22200	0.40
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

6kV, 10kV, S20-M oil-immersed distribution transformer
Rated Capacity (kVA)	High voltage (kV)	high voltage tap changer (%)	Low Voltage (kV)	No-load loss (W)	Load Loss (W)		No-load current %	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	high voltage tap changer (%)	Low Voltage (kV)	No-load loss (W)	Dyn11/Yzn11	Yyn0	No-load current %	Short Circuit Impedance (%)
30	6 6.3 10 10.5	±2×2.5 ±5	0.4	70	505	480	1.20	4.0
50				90	730	695	1.04
63				100	870	830	0.96
80				115	1050	1000	0.96
100				135	1265	1200	0.88
125				150	1510	1440	0.88
160				180	1850	1760	0.80
200				215	2185	2080	0.80
250				260	2560	2440	0.72
315				305	3065	2920	0.72
400				370	3615	3440	0.64
500				430	4330	4120	0.64
630				510	4960		0.48	4.5
800				630	6000		0.48
1000				745	8240		0.48
1250				870	9600		0.40
1600				1050	11600		0.40
2000				1225	14640		0.32	5
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

20KV ,S20-M oil-immersed distribution transformer
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	Linkage group label l	No-load loss (W)	Load Loss (W)	No-load current (%)	Short Circuit Impedance (%)
30	20	±2×2.5 or ±5	0.4	Dyn11 Yzn11 Yyn0	70	528/504	1.70	5.5
50					90	768/728	1.60
63					110	912/872	1.50
80					125	1096/1040	1.40
100					145	1312/1256	1.30
125					170	1584/1504	1.20
160					205	1928/1840	1.10
200					245	2280/2176	1.00
250					290	2672/2544	0.96
315					340	3200/3048	0.88
400					415	3776/3592	0.80
500					485	4512/4304	0.80
630					585	5184	0.72	6.0
800					700	6272	0.64
1000					830	8560	0.56
1250					990	10000	0.56
1600					1200	12080	0.48
2000					1405	15280	0.48
2500					1680	17760	0.40
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

6kV, 10kV, S22-M oil-immersed distribution transformer
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	No-load loss W	Load Loss (W)		No-load current %	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	No-load loss W	Dyn11/Yzn11	YynO	No-load current %	Short Circuit Impedance (%)
30	6 6.3 10 10.5	±2×2.5 or ±5	0.4	65	455	430	1.20	4.0
50				80	655	625	1.04
63				90	785	745	0.96
80				105	945	900	0.96
100				120	1140	1080	0.88
125				135	1360	1295	0.88
160				160	1665	1585	0.80
200				190	1970	1870	0.80
250				230	2300	2195	0.72
315				270	2760	2630	0.72
400				330	3250	3095	0.64
500				385	3900	3710	0.64
630				460	4460		0.48	4.5
800				560	5400		0.48
1000				665	7415		0.48
1250				780	8640		0.40
1600				940	10440		0.40
2000				1085	13180		0.32	5
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

20kV, S22-M oil-immersed distribution transformer
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	low voltage (kV)	Linkage group labeling	No-load loss (W)	Load Loss (W)	No-load current %	Short Circuit Impedance (%)
30	20	±2×2.5 ±5	0.4	Dyn11 Yzn11 Yyn0	65	460/440	1.70	5.5
50					80	670/635	1.60
63					95	800/765	1.50
80					110	960/910	1.40
100					130	1150/1100	1.60
125					150	1385/1315	1.50
160					185	1690/1610	1.10
200					215	1995/1905	1.00
250					255	2340/2225	0.96
315					305	2800/2665	0.88
400					370	3305/3145	0.80
500					430	3950/3765	0.80
630					520	4535	0.72	6.0
800					625	5490	0.64
1000					735	7490	0.56
1250					880	8750	0.56
1600					1065	10570	0.48
2000					1250	13370	0.48
2500					1495	15540	0.40
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.
