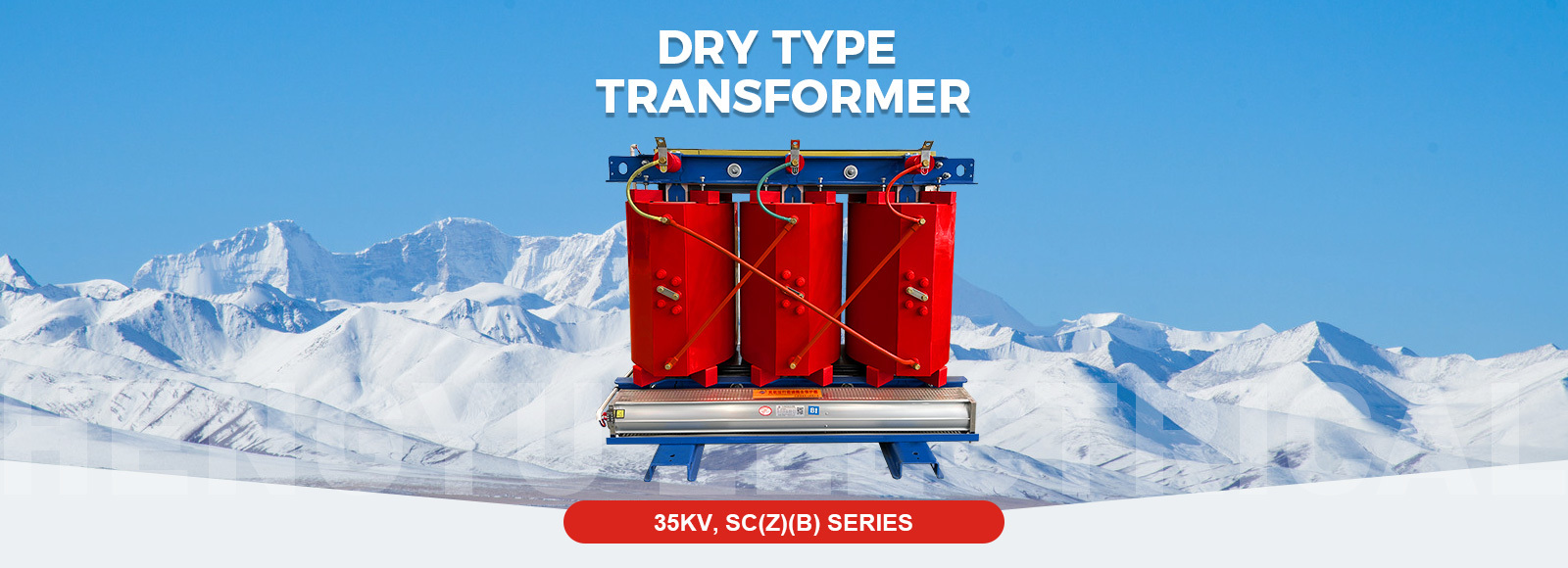

35kV, SC(Z)(B) series dry-type transformer

35kV, SC(Z)(B) series dry-type transformer

Model: 35kV, SC(B)10/11/12/14/18 Capacity: 50kVA~2500kVA; 800kVA~20000kVA Voltage: 35kV~38.5kV

Classification:

Dry type transformer

Key Words:

Mailbox:

Product Details Product parameters

Product Model Meaning

model number	S	C	(Z)	(B)	-	□	□	/	□
Number Meaning	three-phase (physics)	Epoxy resin casting type	on-load voltage regulation	Foil coils are available for low voltage		Performance Level Designator	Rated Capacity (kVA)		Voltage Class (kV)

Product Overview

35kV grade SC(B) series dry-type transformer can directly reduce the grid power to 400V distribution power supply or 10kV transmission power supply for the user, due to the significant advantages of saving space and cost, saving engineering investment, convenient operation and maintenance, efficient transmission, etc., for more and more projects adopted. The products comply with national standards GB6450, GB/T10228 and IEC726.

Product Features

1. High efficiency and energy saving: Low-loss design, significant improvement in energy efficiency, lower operating costs throughout the life cycle.

2. Mute noise reduction: The use of high-quality silicon steel sheet and low magnetic density technology, significantly reducing the amount of magnetostriction, the operation of the industry-leading noise.

3. Voltage resistance upgrade: Optimization of the interlayer structure of the high-voltage coil enhances the ability to withstand the impact of atmospheric overvoltage and operational overvoltage, and at the same time improves the distribution of the electric field, and the amount of partial discharges is further reduced.

4. Intelligent protection: Integrated temperature control system and air-cooling device, overload automatically triggered by forced cooling, equipment overload capacity to improve, to protect the reliability of power supply.

Product Certificate

Transformer Workshop

35kV, SC(B)10 type non-excited voltage regulating distribution transformer
Rated Capacity (kVA)	Coupling Group labeling	Voltagecombination Voltagecombination(kV)			No-load current (%)	Load Losses at Different Insulation Thermal Ratings (W)			No-load loss (W)	Short Circuit Impedance (%)
Rated Capacity (kVA)	Coupling Group labeling	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	No-load current (%)	B (100°C)	F (120°C)	H (145°C)	No-load loss (W)	Short Circuit Impedance (%)
50	Yyn0 Dyn11	35 ~ 38.5	±5 or ±2 x 2.5	0.4	2.6	1350	1420	1520	450	6.0
100					2.2	1970	2080	2230	630
160					1.6	2650	2810	3010	790
200					1.6	3130	3320	3560	880
250					1.4	3560	3800	4060	990
315					1.4	4250	4510	4820	1170
400					1.2	5090	5410	5770	1370
500					1.2	6240	6650	7070	1620
630					1.0	7260	7690	8260	1860
800					1.0	8550	9120	9730	2160
1000					0.8	9880	10450	11210	2430
1250					0.7	12060	12730	13580	2830
1600					0.7	14630	15480	16530	3240
2000					0.7	17190	18240	19470	3820
2500					0.7	20610	21850	23370	4450
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV SC(B)10 type non-excited voltage regulating dry-type power transformer
Rated Capacity (kVA)	Linkage group labeling	voltage combination			No-load current (%)	Load Losses at Different Insulation Thermal Ratings (W)			No-load loss (W)	Short Circuit Impedance (%)
Rated Capacity (kVA)	Linkage group labeling	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	No-load current (%)	B (100°C)	F (120°C)	H (145°C)	No-load loss (W)	Short Circuit Impedance (%)
800	Dyn11 Yd11 Yyn0	35 ~ 38.5	±5 or ±2 x 2.5	3.15 6 6.3 10 10.5 11	0.9	8930	9400	10070	1086	6.0
1000					0.9	10260	10920	11680	2250
1250					0.8	12160	12920	13770	2673
1600					0.8	14630	15480	16530	3130
2000					0.7	17190	18240	19570	3690	7.0
2500					0.7	20610	21850	23370	4230	7.0
3150	Dyn11 Yd11 YynO	35 ~ 38.5	±5 or ±2 x 2.5	3.15 6 6.3 10 10.5 11	0.6	23080	24510	26120	6030	8.0
4000					0.6	27930	29450	31350	7020
5000					0.5	32960	34960	37330	8370
6300					0.5	38470	40850	43600	9900
8000	Dyn11 Yd11 YNd11				0.4	43410	46070	49300	11340	9.0
10000					0.4	52720	55570	59470	12960
12500				6 6.3 10 10.5 11	0.3	60800	64600	69060	15750
16000					0.3	71720	76000	80560	19350
20000					0.3	80750	85500	91480	22950	10.0
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV, SC(B)11 type non-excited regulating dry-type distribution transformer
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	Load Losses at Different Insulation Thermal Ratings (W)			No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High-voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	B (100°C)	F (120°C)	H (145°C)	No-load current (%)	Short Circuit Impedance (%)
50	35 36 37 38.5	±2.5 or ±5	0.4	Dyn11 Yyn0	405	1340	1420	1520	2.10	6
100					565	1970	2090	2230	1.80
160					710	2650	2810	3000	1.40
200		±2×2.5 or ±5			790	3130	3320	3550	1.40
250					890	3580	3800	4060	1.20
315					1050	4250	4510	4820	1.20
400					1230	5100	5410	5790	1.00
500					1450	6270	6650	7110	1.00
630					1670	7250	7690	8230	0.90
800					1940	8600	9120	9760	0.90
1000					2180	9860	10400	11100	0.70
1250					2540	12000	12700	13600	0.70
1600					2910	14600	15400	16500	0.70
2000					3430	17200	18200	19500	0.70
2500					4000	20600	21800	23300	0.70
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV, SC(B)11 type non-excited voltage regulating dry-type power transformer
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	Load Loss at Different Insulation and Heat Resistance Levels (W)			No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	B (100°C)	F (120°C)	H (145°C)	No-load current (%)	Short Circuit Impedance (%)
800	35 36 37 38.5	±2×2.5 or ±5	3.15 6 6.3 10 10.5 11	Dyn11 Yd11 Yyn0	2020	8870	9400	10000	0.85	6
1000					2400	10300	10900	11600	0.85
1250					2810	12100	12900	13800	0.75
1600					3320	14600	15400	16500	0.75
2000					3800	17200	18200	19500	0.65	7
2500					4370	20600	21800	23300	0.65	7
3150					5420	23100	24500	26200	0.65	8
4000					6310	27700	29400	31500	0.60
5000					7530	32900	34900	37400	0.55
6300					8910	38500	40800	43700	0.55
8000				Dyn11 Yd11 YNd11	10100	43400	46000	49300	0.45	9
10000					11600	52400	55500	59400	0.45
12500			6 6.3 10 10.5 11		14100	60900	64600	69100	0.35
16000					17300	71700	76000	81300	0.35
20000					20600	80600	85500	91500	0.30	10
25000					24300	95300	101000	108000	0.30	10
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV, SC(B)12 type non-excited regulating dry-type distribution transformer
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	Load Loss at Different Insulation and Heat Resistance Levels (W)			No-load current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (W)	B (100°C)	F (120°C)	H (145°C)	No-load current (%)	Short Circuit Impedance (%)
50	35 36 37 38.5	±2.5 ±5	0.4	Dyn11 YynO	365	1340	1420	1520	2.10	6.0~14.0
100					510	1970	2090	2230	1.80
160					640	2650	2810	3000	1.40
200		±2×2.5 or ±5			710	3130	3320	3550	1.40
250					800	3580	3800	4060	1.20
315					945	4250	4510	4820	1.20
400					1110	5100	5410	5790	1.00
500					1305	6270	6650	7110	1.00
630					1505	7250	7690	8230	0.90
800					1750	8600	9120	9760	0.90
1000					1960	9860	10400	11100	0.70
1250					2290	12000	12700	13600	0.70
1600					2620	14600	15400	16500	0.70
2000					3090	17200	18200	19500	0.70
2500					3600	20600	21800	23300	0.70
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV, SC(B)14 type non-excited voltage regulating dry-type power transformer
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (kW)	Load Loss (kW)			Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (kW)	B (100°C)	F (120°C)	H (145°C)	Short Circuit Impedance (%)
1000	35 36 37 38.5	±2.5 or ±5	0.4	Dyn11 Yyn0	1.6	8.8	9.4	10.1	6.0~14.0
1250					1.8	10.7	11.4	12.2
1600					2.1	13.1	13.9	14.9
2000					2.5	15.4	16.4	17.5
2500					2.9	18.5	19.6	21.0
3000					3.5	20.3	21.6	23.1
3500					3.9	20.7	22.1	23.5
4000					4.5	24.9	26.5	28.2
4500					4.9	27.4	29.1	31.1
5000					5.4	29.6	31.4	33.6
6300					6.4	34.6	36.7	39.2
8000					7.6	41.7	44.3	47.3
10000					9.1	49.0	52.1	55.7
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.

35kV, SC(B)18 type non-excited voltage regulating dry-type power transformer
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (kW)	Load Loss (kW)			Short Circuit Impedance (%)
Rated Capacity (kVA)	High voltage (kV)	High voltage tap range (%)	Low Voltage (kV)	Linkage group labeling	No-load loss (kW)	B (100°C)	F (120°C)	H (145°C)	Short Circuit Impedance (%)
1000	35 36 37 38.5	±2.5 or ±5	0.4	Dyn11 Yyn0	1.4	8.8	9.4	10.1	6.0~14.0
1250					1.6	10.7	11.4	12.2
1600					1.9	13.1	13.9	14.9
2000					2.2	15.4	16.4	17.5
2500					2.6	38.5	19.6	21.0
3000					3.2	20.3	21.6	23.1
3500					3.5	20.7	22.1	23.5
4000					4.1	24.9	26.5	28.2
4500					4.4	27.4	29.4	31.1
5000					4.8	29.6	31.4	33.6
6300					5.7	34.6	36.7	39.2
8000					6.9	41.7	44.3	47.3
10000					8.2	49.0	52.1	55.7
Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing.
