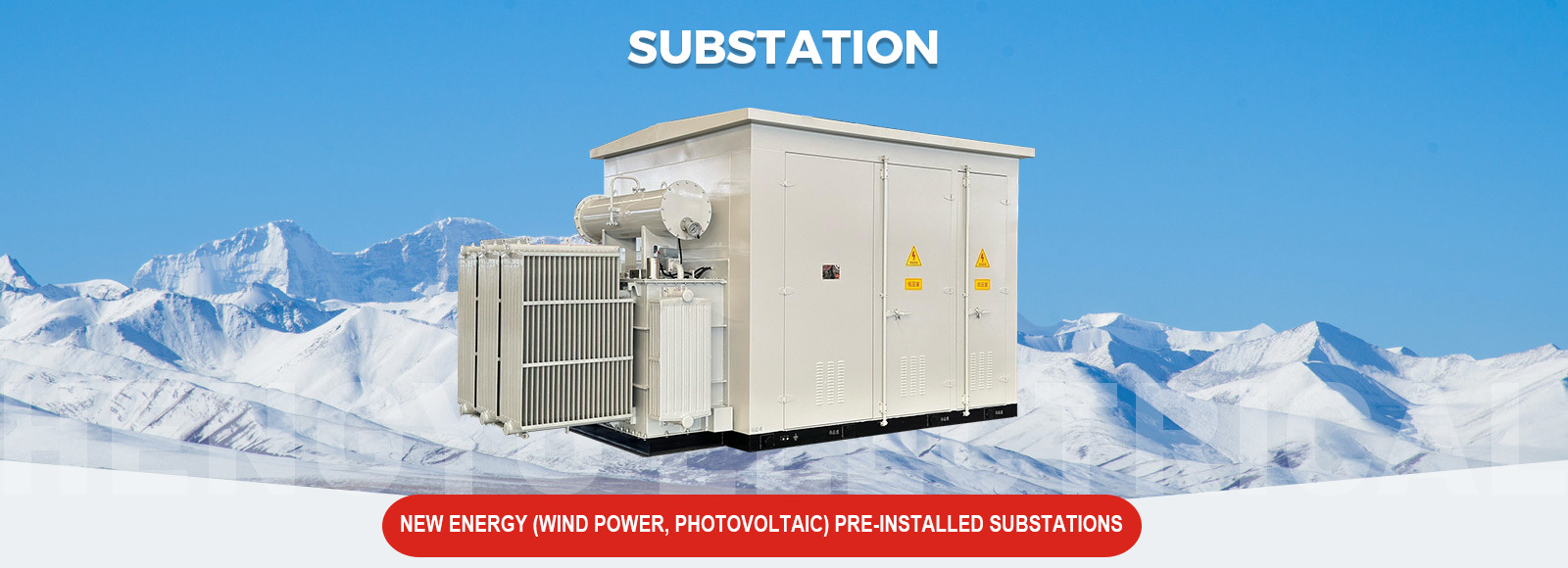

New energy (wind power, photovoltaic) pre-installed substations (Chinese box-type transformer)
Classification:
Key Words:
New energy (wind power, photovoltaic) pre-installed substations (
Mailbox:
Product Model Meaning
model number | Z | G | S | 11 | - | 12/0.4 | - | □ |
number meaning | Combined transformers | G:Common box type F:Separate box type | three-phase (physics) | Performance Level Designator |
| Rated voltage (HV/LV) |
| Transformer Rated Capacity |
Product Overview
This product is absorbing the latest foreign advanced technology, combined with the actual situation of the domestic research and development, the whole product has a small size, easy installation and maintenance, low noise, low loss, anti-theft, overload capacity, full protection and so on. Suitable for new neighborhoods, green belts, parks, stations, hotels, construction sites, airports and other places.
ZMGF28-12/0.4 Combined box-type substation (American type) is suitable for 10KV ring network power supply, dual power supply or terminal power supply system, as a substation, metering, compensation control and protection device.
This product conforms to the following standards: GB/T17467-1998 "High-voltage and low-voltage pre-assembled substation"; DL/T537-93 "6-35KV box-type substation ordering technical conditions".
Conditions Of Use
Altitude not exceeding 1000m.
1.Ambient temperature: -35℃~+40℃.
2.Relative humidity: Daily average not more than 95%, monthly average not more than 90%.
3.Installation place: No fire, explosion danger, chemical corrosive gas and well-ventilated place, the ground inclination angle is not more than 3 °.
Functions And Features
1. Fully insulated, fully sealed, maintenance-free, reliable guarantee of personal safety;
2. Compact structure, volume is only 1/3-1/5 of the same capacity of the European variable, low height;
3. It can adopt split-box structure to avoid the pollution of oil in the transformer tank;
4. The high-voltage side adopts double fuses for full range protection, which greatly reduces the cost;
5. It can be used for ring network or terminal, and the cable head can be plugged and unplugged in 200A load current in emergency;
6. The box body adopts honeycomb double sandwich composite board, insulation and heat dissipation function;
7. The low-voltage side is equipped with an electronic phase-loss protector, which can quickly disconnect the main inlet switch when abnormal voltage occurs in the system;
8. Oil-immersed load switch or SF6 load switch on the high-voltage side, which can be upgraded electrically, laying the foundation for realizing distribution network automation;
9. Use oil-immersed S9 or better performance S11 series transformers.
| New energy (wind power, photovoltaic) pre-installed substations (Chinese box-type transformer) | |||||
| serial number | sports event |
unit (of measure) |
High Voltage Electrical Appliances | transformers | Low-voltage electrics |
| 1 | rated voltage | kV | 6/10 | 6/0.4, 10/0.4 | 0.4 |
| 2 | Rated capacity | kVA | 50~1600 | ||
| 3 | rated current | A | 200, 400, 630 | 100~3200 | |
| 4 | Rated short-circuit breaking current | A | Load switch 400-630 | 15~63kA | |
| kA | Combination switch depends on fuse | ||||
| 5 | Rated short-time withstand current | kA | 16,20(4s) | 15(1s) | |
| 30(1s) | |||||
| 6 | Rated peak withstand current | kA | 31.5,50 | 30 | |
| 63 | |||||
| 7 | Industrial frequency withstand voltage(1min) | kV | Relative to and between 32/42 | 25/35 (oil immersion) | ≤0.3,2 |
| Isolation breaks 36/48 | 20/28 (dry) | >0.3,2.5 | |||
| 8 | Lightning Impact Withstand Voltage (Peak) | kV | Relative to and between 60/75 | 60/75 | |
| Isolation break 70/85 | |||||
| 9 | Enclosure protection grade | IP32 | |||
| 10 | noise level | db | 55 | ||
| 11 | Implementation standards | GB/T 17467 High-voltage and low-voltage pre-assembled substations | |||
| Note: The above data is only for reference when designing and selecting, and the final data is subject to the real thing. | |||||
